Home > USB Audio Devices > USB Audio Capture Devices > Tascam US-125M USB Mixing Audio Interface

Tascam US-125M USB Mixing Audio Interface

Product Code: AUDUS125M | Ships To: World Wide Shipping Available

Out of stock

About this Product


The US-125M is an USB audio interface with Mixer functionality. It combines a mic, instrument and line source with a computer audio signal and it feeds the mix to your computer via USB. The US-125M provides up to 16 bit/48 KHz audio resolution and is ideal for broadcasting (live streaming) over the internet. It features four inputs with dedicated level controls: a Microphone input (balanced XLR/TRS on rear or unbalanced mini jack on front) with switchable limiter and Signal/Overload indicator, a Guitar input (standard phone jack), a Stereo line input (RCA) and a Stereo audio input from computer via USB. This USB-powered device is housed in a solid aluminum case, and can also be used as a simple stand-alone mixer.

Main Features:

  • USB audio interface with mixer functionality
  • Combines a mic, instrument and line source with a computer audio signal and feeds the mix to your computer via USB
  • Ideal for broadcasting (live streaming) over the internet
  • Four inputs with dedicated level controls
  • Stereo audio output to computer via USB or directly to RCA output jacks
  • Monitor output (RCA) and headphones output (mini-jack) with level control
  • Zero-latency hardware monitoring
  • Can be used as a simple stand-alone mixer
  • Operates using standard Windows (WDM) and Mac OS X (CoreAudio) audio drivers
  • Audio resolution up to 16 bit/48 kHz
  • USB 2.0 equipped (also supports USB 1.1)
  • USB-powered, no AC adapter required
  • Solid aluminum case

    What's Included

  • USB cable(1.5m)
  • Warranty card
  • Quick Start Guide
  • Owner's manual

    This product is recommended for use with the following popular music recording applications:

  • WavePad Audio Editing Software
  • MixPad Multi-Track Recording Software

    Key Features


    • Supported sampling frequency: 32/44.1/48kHz
    • Supported bit rate: 16bit
    • Power: USB bus powered
    • Dimensions: 150(W)× 40.6(H)× 122(D)mm
    • Weight: 500g
    • Operating temperature: 5 to 35°C

      Analog Audio Inputs

    • MIC IN (REAR/XLR), Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
    • MIC IN (REAR/TRS), Connector: 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
    • MIC IN (FRONT), Connector: 1/8"(3.5mm) Stereo Mini Jack, UNBALANCED
    • INST IN, Connector: 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED
    • LINE IN, Connector: RCA pin-jack, UNBALANCED

      Audio Performance

    • Frequency response: 20Hz to 20kHz, +/-2dB(MIC to LINE, LINE to LINE, INST to LINE, PC to LINE)
    • Noise level: XLR-3-31 : -75dBV or less (when direct monitoring 1kHz, MIC IN to LINE OUT, MIC in knob set at -20dB below maximum, OUTPUT knob set at -10dB below maximum, JEITA)
    • THD: 0.1% or less (when direct monitoring 1kHz, MIC IN to LINE OUT, MIC in knob set at -20dB below maximum, OUTPUT knob set at -10dB below maximum, JEITA)

    System Requirements


    • Windows XP/Vista/7/8 and 10
    • Works on Mac OS X 10.4 to 10.11
    • 1 x Available USB Port

    Other Images

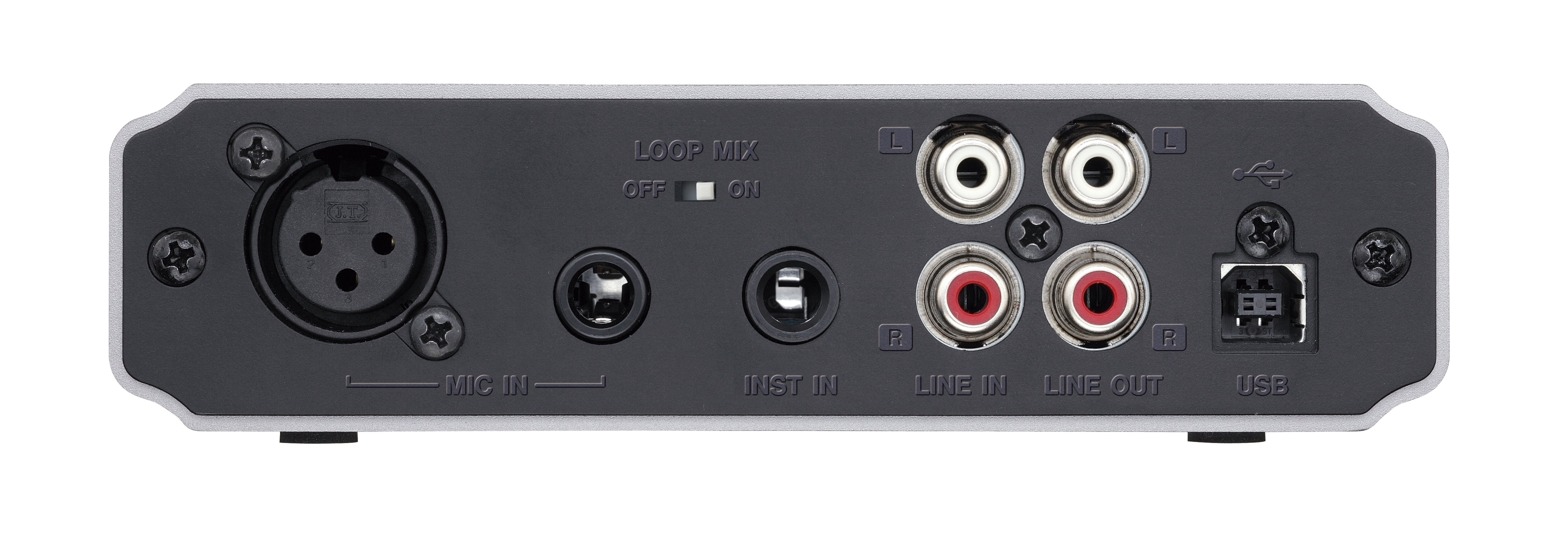

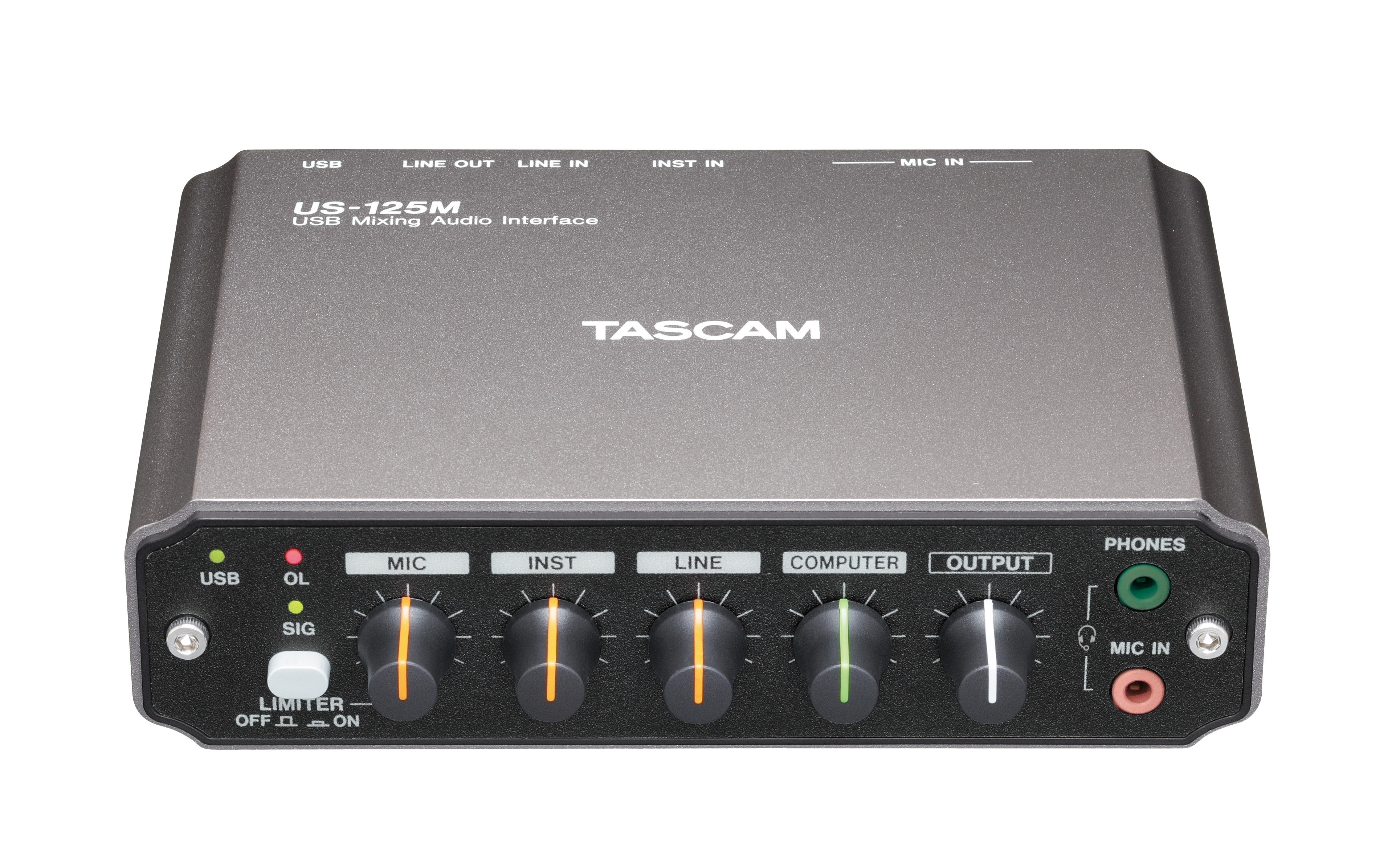

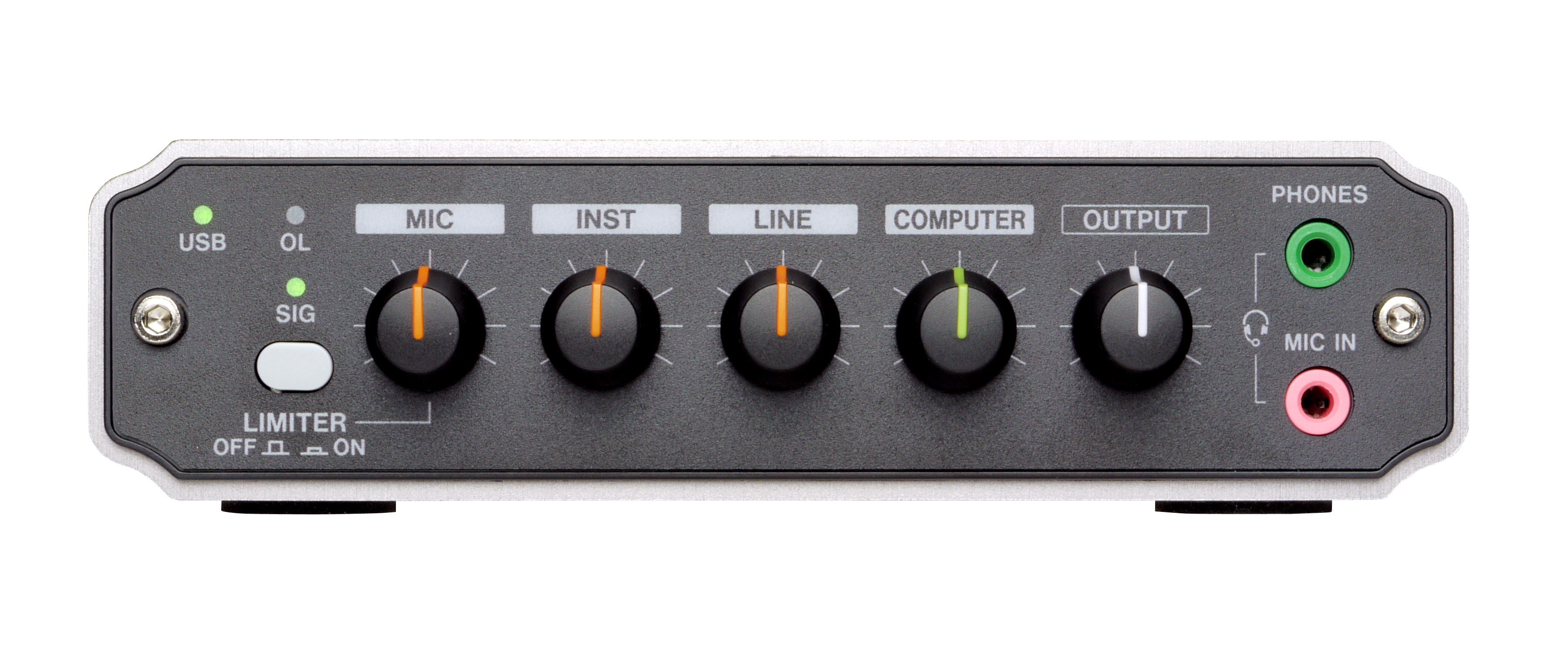

    Tascam US-125M USB Mixing Audio Interface Tascam US-125M USB Mixing Audio Interface
  • Tascam US-125M USB Mixing Audio Interface



    Our Price:

    Only $179.95 USD

    Product Currently Unavailable



    Works on Windows Plus Works on Mac
