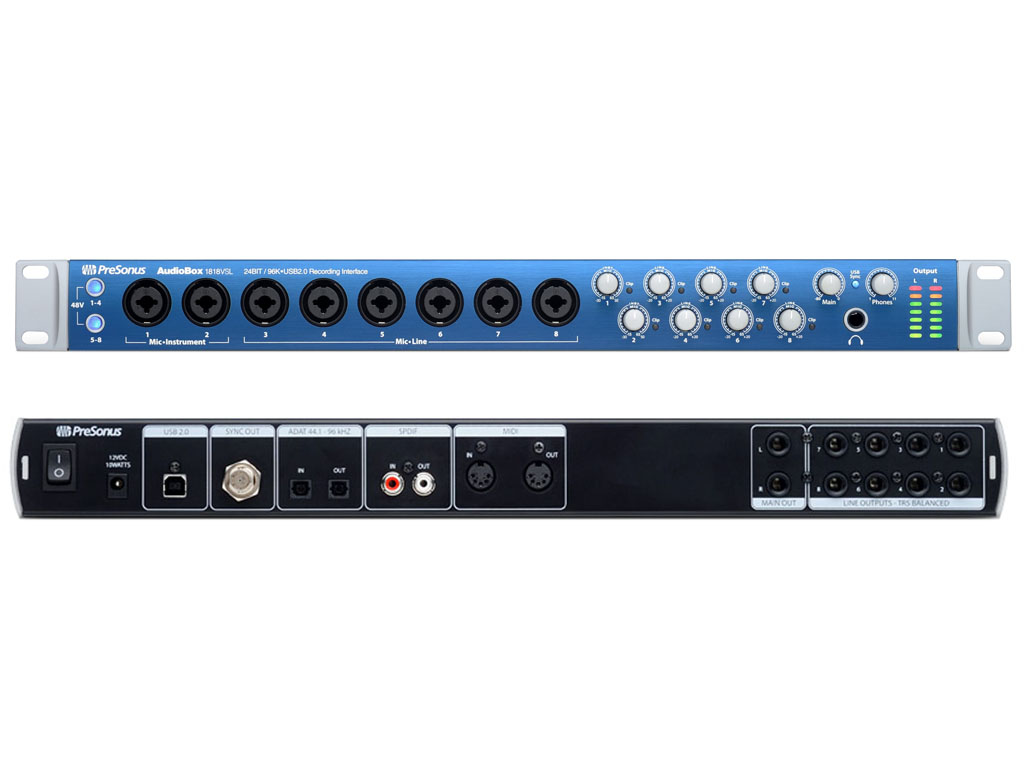

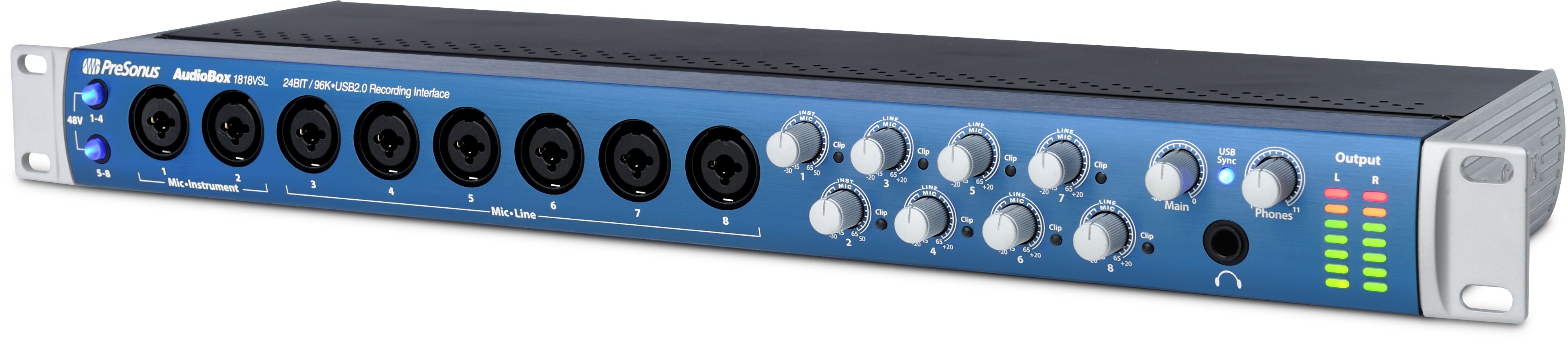

PreSonus AudioBox 1818VSL USB 2.0 Audio Interface

Product Code: AUDUSBPRESONUS | Ships To: USA ONLY

Out of stock

About this Product


The Presonus AudioBox 1818VSL USB Audio Interface is without question, the finest professional USB audio/MIDI interface on the market! The 1818VSL can record 18 tracks simultaneously and offers near-zero-latency dynamics processing, parametric EQ, reverb, and delay effects.

Recording bands and project-studio owners will love the revolutionary 18 channel, rackmount AudioBox 1818VSL because it has the power of an 18 x 18 StudioLive digital mixer, including signal processing with near-zero latency and the same high-end pro audio quality, including high-headroom XMAX Class A preamps. Plus a complete StudioLive 16.0.2 Fat Channel for compression, limiting, downward expansion, parametric EQ, high-pass filter, delay, and reverb on all inputs and playback streams.

Presonus AudioBox 1818VSL USB 2.0 Audio Interface Features:

  • Next-generation 24-bit / 96 kHz, 18 x 18, USB 2.0 recording interface and computer-controlled mixer
  • 8 Class A XMAX mic / instrument preamps
  • 2 instrument inputs
  • 6 balanced line inputs
  • Balanced main L/R outputs
  • 8 balanced line outputs
  • Near-zero-latency monitoring with full effects and processing
  • VSL (Virtual Studio Live): 26 x 18 ultra-low latency DSP mixer with StudioLive 16.0.2 Fat Channel dynamics processing and EQ for each analog input and its DAW return plus two stereo effects buses with reverb and delay
  • Over 50 Fat Channel DSP presets for enhancing instrument and vocal recordings
  • Headphone amplifier
  • Clip lights for each channel
  • USB Sync LED
  • Dual LED Level ladders (meters)
  • MIDI I/O
  • ADAT I/O
  • Word Clock I/O
  • S/PDIF I/O
  • Globally switchable phantom power
  • Rack-mountable in one rack space (1U)
  • External 12 VDC power supply included
  • ncludes Studio One Artist software with unlimited track count and over 4GB of third-party resources

    Key Features


      Microphone Inputs
    • Connector Type Combo, XLR, female, balanced
    • Mic Preamp EIN -133 dB, 20 kHz BW, max gain, Rs=40?, A-wtd
    • Frequency Response 20 Hz - 20 kHz, ±0.25 dB, unity gain
    • THD+N 0.002%, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
    • S/N Ratio 97 dB, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
    • Gain Control Range -15 dB to +65 dB
    • Input Max Headroom +16 dBu, < 0.5% THD
    • Input Impedance 1.7 k?
    • Phantom Power +48 VDC, 10 mA total

      Line Inputs

    • Connector Type Combo, 1/4 inch TS, female, unbalanced
    • Frequency Response 20 Hz - 20 kHz, ±0.25 dB, unity gain
    • THD+N 0.002%, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
    • S/N Ratio 98 dB, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
    • Gain Control Range -20 dB to +20 dB
    • Input Max Headroom +21 dBu, < 0.5% THD
    • Input Impedance 10 k?

      Instrument Inputs

    • Connector Type Combo, 1/4 inch TS, female, unbalanced
    • Frequency Response 20 Hz - 20 kHz, ±0.25 dB, unity gain
    • THD+N 0.003%, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
    • S/N Ratio 89 dB, 0 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd
    • Gain Control Range -30 dB to +50 dB
    • Input Max Headroom +21 dBu, < 0.5% THD
    • Input Impedance 1 M?

      Analog Outputs

    • Connector Type 1/4 inch TRS, female, impedance balanced
    • Frequency Response 20 Hz - 20 kHz, ±0.25 dB
    • THD+N 0.003%, 1 kHz, 22 kHz BW, A-wtd
    • S/N Ratio 109 dB, 1 kHz, 22 kHz BW, A-wtd
    • Output Level +10 dBu, <0.5% THD
    • Output Impedance 51?

      Headphone Outputs

    • Connector Type 1/4 inch TRS, female, stereo
    • Maximum Power 120 mW/ch @ 60? load
    • Frequency Response 20 Hz - 20 kHz, ±0.5 dB, max gain
    • THD+N 0.01%, 1 kHz, max gain, 20 kHz BW, A-wtd
    • S/N Ratio 96 dB, 1 kHz, max gain, 20 kHz BW, A-wtd

      Digital

    • ADC Dynamic Range 114 dB, 48 kHz, A-wtd
    • DAC Dynamic Range 114 dB, 48 kHz, A-wtd
    • Bit Depth 24-bit
    • Sample Rates 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
    • Maximum Latency 6 mS, analog input to analog output
    • ADAT Optical I/O Toslink™ connectors, ADAT/SMUX formats
    • S/PDIF I/O RCA female connectors
    • Word Clock Output BNC connector, 4.5 Vpp @ 75? load
    • MIDI I/O 5-pin DIN connectors

    System Requirements


    • Windows XP/Vista/7/8 and 10
    • Works on Mac OS X 10.4 to 10.11
    • USB 2.0 or better port

    Other Images

    PreSonus AudioBox 1818VSL USB 2.0 Audio Interface
  • PreSonus AudioBox 1818VSL USB 2.0 Audio Interface



    Our Price:

    Only $599.95 USD

    Product Currently Unavailable



    Works on Windows Plus Works on Mac
