FXO PCI and USB Telephony Boards and Devices

For VoIP Telephony and Recording Applications

If you require a professional telephony device for call recording, dial in dictation, a complex PBX or IVR system, or any need requiring analog voip conversion, AltoEdge has a range of PCI and USB VOIP boards suited to your needs.

For NCH Software applications the TELCTA** devices are recommended as the applications contain a specific telephony driver for these boards. The CallURL boards utilise TAPI and are suited to NCH Software telephony applications or other TAPI based software.

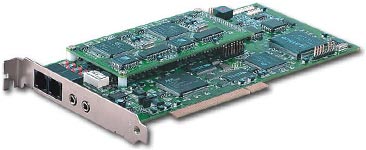

Professional PCI Telephony Boards

TELCTAS4, TELCTAS8, TELCTAS16
Available in 4, 8 or 16 lines per board - World Wide Shipping Available

Options include 4, 8 or 16 lines per board. Multiple boards can be installed in the same PC (subject to PCI slot availability) for multple incoming analog lines.

This telephony card is suitable for NCH Software's VRS Call Recording System, IVM Interactive Voice Response System and DialDictate telephone dictation server. They are not suitable for other TAPI based applications as the NCH Software applications have a special driver to communicate with these boards.

Features:
  • 4, 8 or 16 high impedance analog telephone ports.
  • Ability to configure multiple boards in a single PC
  • Caller ID detection, supports FSK as well as DTMF
  • Support LC Drop/Polarity Reversal detection for automated recording start and stop
  • Professional quality card for business applications.
  • Easy to install with plug-and-play operation.
  • Certified for use in USA, Europe, Australia and others.
Click here to see a larger image

System Requirements
  • Windows 2000 / XP / 2003 / Vista / 7 (32-bit versions only - 64-bit operating systems are not supported)
  • NCH Software Application Download Software Here
  • Free PCI bus slot, PCI Bus, Rev. 2.2. If you are in doubt check the manual of your computer motherboard to see if it is a "PCI bus 2.2".
  • Analog telephone ports. (RJ-14 jacks).
  • Note: you cannot run both a CAHTA PCI and a CAHTA USB board on a machine at the same time.
Telephone Interface
  • Recording impedance: 100kohm
  • Connectors: RJ-14 jacks
  • Caller ID and Caller Name: International support (FSK and DTMF)
    Note: Caller Name support is not included in the current driver but should be implemented in the next driver version.
  • Sample rate: 8KHz
  • DTMF digits logged: 0 to 9, *, #, A, B, C & D 40ms min.
Cables:
 Add PCI Telephony Board to Cart:

  TELCTAS4 (USD$449.00)   TELCTAS8 (USD$539.00)   TELCTAS16 (USD$949.00)

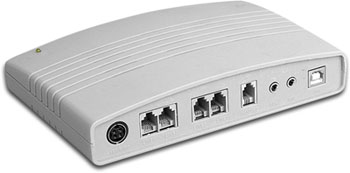

Professional Telephony USB Device

TELCTAUSB2, TELCTAUSB4
Available in 2 or 4 lines per board - World Wide Shipping Available
These USB devices are suitable for NCH Software's VRS Call Recording System, IVM Interactive Voice Response System and DialDictate telephone dictation server. They are not suitable for other TAPI based applications as the NCH Software applications have a special driver to communicate with these devices.

There are options for 2 or 4 lines per device. Multiple devices can be installed in the same PC (subject to USB port availability).

Features:
  • 2 or 4 high impedance analog telephone ports
  • Ability to configure multiple devices in a single PC
  • Caller ID detection, supports FSK as well as DTMF
  • Support LC Drop/Polarity Reversal detection for automated recording start and stop
  • Professional quality card for business applications.
  • Easy to install with plug-and-play operation.
  • Certified for use in USA, Europe, Australia and others.
Click here to see a larger image

System Requirements
  • Windows 2000 / XP / 2003 / Vista / 7 (32-bit versions only - 64-bit operating systems are not supported)
  • NCH Software Applications Download Software Here
  • Free USB port.
  • Analog telephone ports. (RJ-14 jacks).
  • Note: you cannot run both a CAHTA PCI and a CAHTA USB board on a machine at the same time.
Telephone Interface
  • Recording impedance: 100kohm
  • Connectors: RJ-14 jacks
  • Caller ID and Caller Name: International support (FSK and DTMF)
    Note: Caller Name support is not included in the current driver but Synway plan to implement in the next driver version.
  • Sample rate: 8KHz
  • DTMF digits logged: 0 to 9, *, #, A, B, C & D 40ms min.
Cables:
 Add Telephony USB Device to Cart:

  TELCTAUSB2 (USD$209.00)   TELCTAUSB4 (USD$279.00)

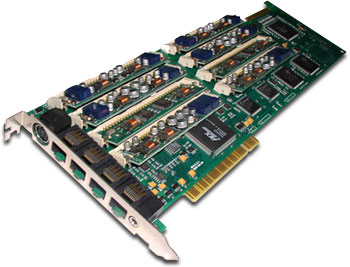

Professional PCI Telephony TAPI Board

TELCURLVL2, TELCURLVL4, TELCURLVL8
Available in 2, 4 or 8 lines per board
These multiple line telephony cards are suitable for Interactive Voice Response (IVR), Voice Mail, Automated Attendant, Telephone Dictation and other telephony applications. They work with almost all TAPI compliant telephony software. For examples of software that use these cards, see:
Features:
  • 2, 4 or 8 independent voice processing ports supporting low-to medium-density voice systems in a single PC
  • u-law voice coding with selectable data rates 32 Kb/s or 64 Kb/s on a channel-by-channel basis
  • Configure multiple boards in a single PC for easy and cost-effective system expansion, capable of scaling from 2 to 16 ports
  • Caller ID detection, supports FSK as well as DTMF
  • Full duplex voice channels
  • Bundled with TAPI and wave drivers for Windows 2000 and Windows XP
  • Support LC Drop/Polarity Reversal detection
  • Detailed call progress monitoring & analysis
  • Up to 4 boards can be installed in the same PC.
  • Professional quality card for business applications.
  • Easy to install with plug-and-play operation.
  • Approved by FCC (USA), CE (Europe) and others.
Click here to see a larger image

System Requirements
  • Windows XP / 2003 / Vista / 7 (32-bit versions only - 64-bit operating systems are not supported)
  • Free PCI bus slot **
  • Analog telephone ports. (Two RJ-14 jacks).
  • TAPI Software (see NCH Software's Telephone Software Index for the list).
  • VL2 and VL4 require a 3.3V PCI slot. **

** Over the past few years there have been a number of variants of PCI slots. The 2 line and 4 line cards (VL2 and VL4) need PCI slots that have 3.3V (PCI 2.2). If you are in doubt check the manual of your computer motherboard to see if it is a "PCI bus 2.2". You will be confident all cards work if you know your PCI slots have both 3.3 and 5V supplies. By far the majority of modern computers have this but it is worth checking the motherboard manual.

Telephone Interface
  • Line interface: Loop-start
  • Connectors: Two RJ-14 jacks
  • Return loss: 20 dB min (300 to 3300 Hz at 600 Ohms impedance)
  • Caller ID: International capability via on-hook audio path
  • Sample rate: 8KHz
  • DTMF digits: 0 to 9, *, #, A, B, C & D 40ms min.
Cables:
 Add Professional PCI Telephony TAPI Board to Cart:

  TELCURLVL2 (USD$399.00)   TELCURLVL4 (USD$549.00)   TELCURLVL8 (USD$1049.00)
